Describe
Concrete batching plant HZS50, whose production capacity is 50m3/h, flexibly consists of JS1000 twin shaft concrete mixer, PLD1600 batching machine, cement silos, control system and relevant equipment. On the other hand, the 0.75m3 twin shaft concrete mixer, compulsory and efficient, can work independently.
This kind of 50m³ concrete batch plant is of simple structure, easy installation and disassembling, convenient construction, widely applied to various big and middle industry and civil construction of bridge, highway, water conservancy project and wharf and so on.
HZS50 cement batching plant, capable of excellent mixing hard-dry concrete, light aggregate concrete and various mortars, is an ideal equipment to produce commercial concrete.This product Low cost mini concrete batching plant for sale is equipped with the storage, batching, conveying, stirring, control and other devices of various raw materials required for precast concrete, and various aggregates, powders, admixtures, water, etc.A complete set of equipment for supplying concrete in a concentrated manner than by a mixer.
This kind of 50m³ concrete batch plant is of simple structure, easy installation and disassembling, convenient construction, widely applied to various big and middle industry and civil construction of bridge, highway, water conservancy project and wharf and so on.
HZS50 cement batching plant, capable of excellent mixing hard-dry concrete, light aggregate concrete and various mortars, is an ideal equipment to produce commercial concrete.This product Low cost mini concrete batching plant for sale is equipped with the storage, batching, conveying, stirring, control and other devices of various raw materials required for precast concrete, and various aggregates, powders, admixtures, water, etc.A complete set of equipment for supplying concrete in a concentrated manner than by a mixer.
Model | Capacity | Total power | Discharge Height | Dimension (L x W) |
HZS25 | 25 m3/h | 46 kw | 1 ~ 4 m | 14m x 12m |
HZS35 | 35 m3/h | 77 kw | 1 ~ 4 m | 18m x 9m |
HZS50 | 50 m3/h | 97 kw | 1 ~ 4 m | 18m x 11m |
HZS60 | 60 m3/h | 122 kw | 1 ~ 4 m | 38m x 15.7m |
HZS75 | 75 m3/h | 138 kw | 1 ~ 4 m | 18m x 20m |
HZS90 | 90 m3/h | 149 kw | 1 ~ 4 m | 35m x 21.5m |
HZS120 | 120 m3/h | 191 kw | 1 ~ 4 m | 46.5m x 21.5m |
HZS180 | 180 m3/h | 273 kw | 1 ~ 4 m | 52m x 25m |
details
-
Concrete MixerJS series concrete mixer is a twin-shaft forced mixer, which has two advantages of independent performance and simple concrete mixing station with PLD series batching machine. It can be used to mix dry hard concrete and various mortars, and is very popular in civil construction engineering, road and bridge construction.
-
PLD Aggregate Batching PlantPLD series concrete batching machine adopts electronic weighing, computer control and digital display, which can automatically complete the batching procedures of 3-6 kinds of aggregates such as sand, stone and cement. Hopper cumulative weighing, belt cumulative weighing and individual weighing are available.
-
Cement SiloIt is suitable for bulk cement storage silo in engineering construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other projects. Waterproof, moisture-proof, prevent cement loss, small footprint, long service life and low cost.
-
Weighing SystemWater weighing, cement weighing, additive weighing, and other weighing systems can also be installed according to customer requirements. It adopts three-point weighing method, which has the characteristics of accurate weight, automatic compensation, fast speed and convenient operation. The weighing error is controlled within ±1%.
-
Control RoomThe control system adopts Siemens hardware and Windows operating platform, which can realize manual operation, semi-automatic operation and fully automatic operation. Remote faults can be easily eliminated through the Internet and telecommunications, improving the user's ability to find problems and perform maintenance.
-
Cement Screw ConveyorA new type of suspended intermediate hanging bearing frame is adopted to increase the size of the bearing frame, which reduces the logistics resistance. In addition, the design of small diameter, high speed and variable pitch ensures smooth, fast and even feeding. The outer shell is made of seamless steel pipes, and each section is connected as a whole by flanges.
If you are interested in our company or products, welcome to visit our company you can also get contact with us through online consulting,
E-mail: info@smachine1983.com and Telephones:+86 18538068019.
Company profile
Zhengzhou Smart Machinery Manufacturer Co., Ltd. was established in 1990. It is an enterprise mainly specializing in the research and development, manufacturing and sales of construction machinery including concrete mixing plants, concrete block production lines, etc.

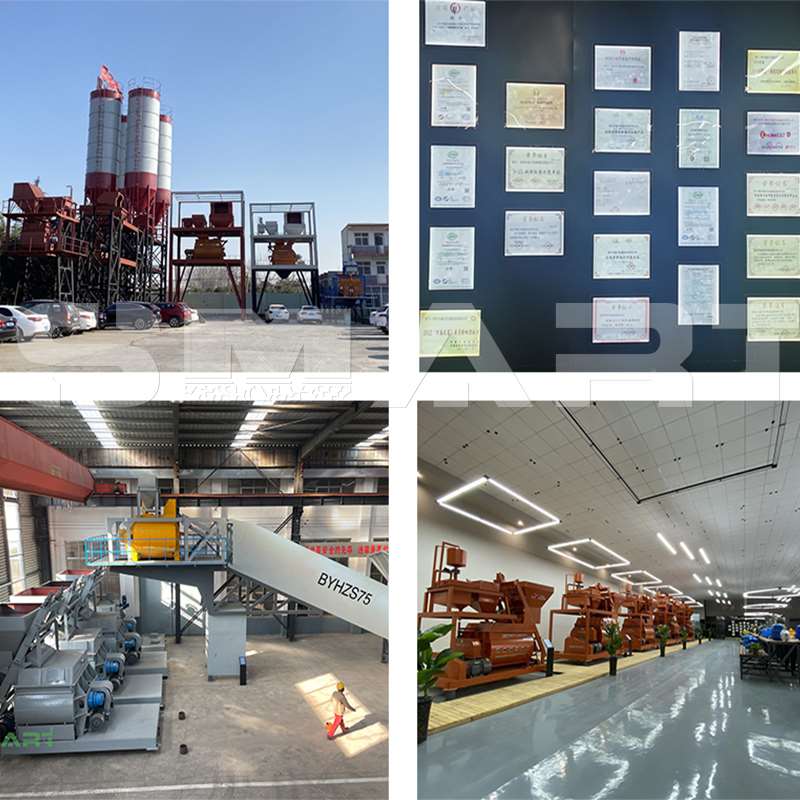

The factory is located in Henan Province, China, covering an area of 126,000 square meters, with 50 professional engineers and 200 workers. After more than 30 years of continuous innovation and hard work, products have been sold all over the world and are well received by domestic and abroad users, including more than 100 countries and regions: Philippines, Cambodia, Malaysia, Kazakhstan, Uzbekistan, Mongolia, Russia, Colombia, Ecuador, South Africa and so on, and set up an office in Cambodia, with a sound, complete, and huge sales network system.
We can provide customers with the highest quality solutions and production to meet customers' needs for different products, at the same time, we can provide a full range of turnkey projects: equipment installation, commissioning, maintenance and training.
High-quality service, advanced technology, sophisticated equipment, and strict management are the foundation reason for company's continuous development and products that can win the support of users. We have won foreign customers’ trust and praise with perfect and professional pre-sales, in-sales, and after-sales services.
The factory is located in Henan Province, China, covering an area of 126,000 square meters, with 50 professional engineers and 200 workers. After more than 30 years of continuous innovation and hard work, products have been sold all over the world and are well received by domestic and abroad users, including more than 100 countries and regions: Philippines, Cambodia, Malaysia, Kazakhstan, Uzbekistan, Mongolia, Russia, Colombia, Ecuador, South Africa and so on, and set up an office in Cambodia, with a sound, complete, and huge sales network system.
We can provide customers with the highest quality solutions and production to meet customers' needs for different products, at the same time, we can provide a full range of turnkey projects: equipment installation, commissioning, maintenance and training.
High-quality service, advanced technology, sophisticated equipment, and strict management are the foundation reason for company's continuous development and products that can win the support of users. We have won foreign customers’ trust and praise with perfect and professional pre-sales, in-sales, and after-sales services.
customer visit
If you are interested in our company or products, welcome to visit our company you can also get contact with us through online consulting,
E-mail: info@smachine1983.com and Telephones:+86 18538068019.
Service
1. Guarantee Time
All of the life time of SMART machine, free for the first 12 months except the wrong operation.
2. Free Spare Parts
SMART will prepare the one set spare parts and delivery them along with the machine.
SMART have the 12 workshops to produce every parts and we can produce spare parts to deliver them to you within 2 days.
3. Technical Supporting
SMART Engineer will train you workers to make sure that they know every detail about the machine to make sure they know how to deal with the urgent situation and can repair some normal problem.
4. Office
If we have more than 5 orders in one Area, we will set one office there to take care the after-sales service.
All of the life time of SMART machine, free for the first 12 months except the wrong operation.
2. Free Spare Parts
SMART will prepare the one set spare parts and delivery them along with the machine.
SMART have the 12 workshops to produce every parts and we can produce spare parts to deliver them to you within 2 days.
3. Technical Supporting
SMART Engineer will train you workers to make sure that they know every detail about the machine to make sure they know how to deal with the urgent situation and can repair some normal problem.
4. Office
If we have more than 5 orders in one Area, we will set one office there to take care the after-sales service.
Successful cases
