YHZS25

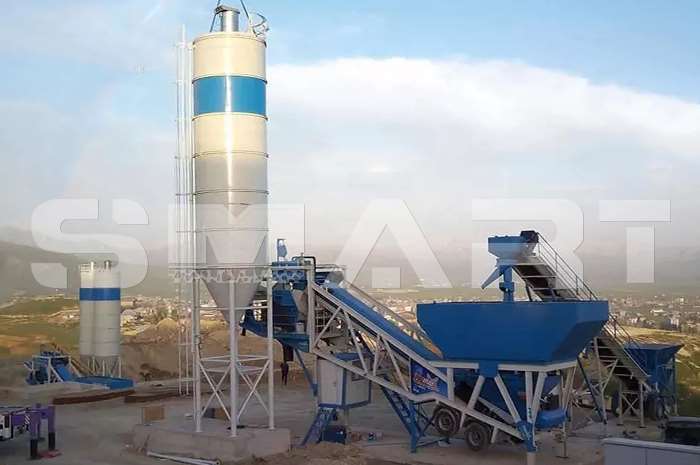

Mobile Concrete Batching Plant YHZS25
  • Capacity: 25m³/h
  • Concrete Mixer: JS500
  • Max.Aggregate size: 80/60mm
  • Aggregate Batching Machine: PLD800
  • Total Power: 35kw
Describe
Mobile concrete batching plant YHZS25, whose production capacity is 25m³/h, adopts non-foundation and non-commissioning modular design, it features for good mobility, convenient and quick installation. It only takes 3 days from installing to using. In addition to that, YHZS25 cement mixing plant adopts patent technology “click to supplement”, double control system, self-correcting technology to ensure producing high-quality concrete.

YHZS25 adopt JS500 twin-shaft compulsory mixer ad the host mixer, the mixing efficiency, mixing range wide, can fullest meet various producing requirement. YHZS25 batching plant is ideal concrete equipment for bridges, highway, port, water conservancy project and power station and so on.

Features
1.Rapid and easily to assemble and disassemble, conveniently to transport.All of the cable connection don’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.
2.The performance of mixing is perfect. It adopts electric drum/twin-shaft concrete mixer to make the concrete mixing equally in shortest time.
3.For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
4.Top-quality configuration, high reliability, accurate measurement, easy operation.
Model YHZS25 YHZS35 YHZS50 YHZS60 YHZS75
Capacity 25m³/h 35m³/h 50m³/h 60m³/h 75m³/h
Max.Dragging Speed 40km/h
Discharging Height 3800mm
Concrete Mixer JS500 JS750 JS1000 JS1000 JS1500
Max.Aggregate size 80/60mm 80/60mm 80/60mm 80/60mm 80/60mm
Aggregate Batching Machine PLD800 PLD1200 PLD1600 PLD2400 PLD2400
Storage Bins Quantity 2 or 3 or 4 sorts 2 or 4 sorts
Measurement Precision
Water weighing precision ±1% ±1% ±1% ±1% ±1%
Cement weighing precision ±1% ±1% ±1% ±1% ±1%
Additive weighing precison ±1% ±1% ±1% ±1% ±1%
Control System Type  Computer auto-control, 1 set
Cement Silo Capacity 30t/50t/100t 50t/100t
Total Power 35kw 60kw 85kw 90kw 100kw
Details

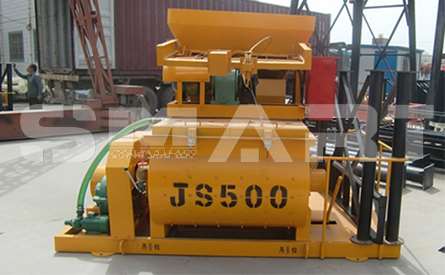

Concrete mixer
Concrete mixer
JS Series Mixer: 1.Thickening track : 18# channel steel 2.Protection device: Travel witch 3.Wear resistant Steel wire: Alloysteel 4.Bigger hopper:800-2400L 5.Discharge gate with sealing rings 6.Pneumatic unloading & manual unloading 7.Air pump control 8.Electric pump with throttle valve 9.Cleaning device 10.Spraying device.

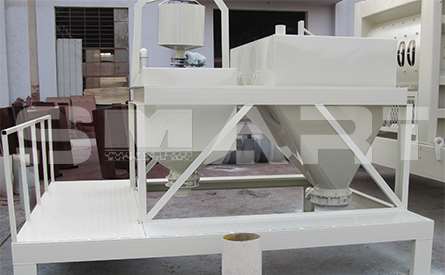

Weighing system
Weighing system
Water weighing, cement weighing, additive weighing, and other weighing systems can also be installed according to customer requirements. It adopts three-point weighing method, which has the characteristics of accurate weight, automatic compensation, fast speed and convenient operation. The weighing error is controlled within ±1%.
Cement silo
Cement silo
It is suitable for bulk cement storage silos in engineering construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other projects. It is waterproof, moisture-proof, prevents cement loss, reduces urban air dust pollution, has a small footprint, long service life, and low cost.
PLD Series Batching Machine:
PLD Series Batching Machine:
SMART mobile batching plant adopts microcomputer and operation-console double control system, having automatic, semi-automatic and manual three controlling modes. YHZS25 fully consider the concrete requirements, having the unique technologies of unique ratio deposit, storage, self-compensation of weighing fall and moisture, self-reversing of over-weighing and short-weighing,
Pneumatic System
Pneumatic System
Pneumatic system adopts well-known Taiwan Fusheng air compressor, which is of high configuration, high reliability, high intellectualization and economic running, providing sufficient air supplying for the entire concrete mixing plant.
Control room
Control room
Full automatic control, Siemens motor and Schneider electrical elements. The controls system adopts Siemens hardware and Windows operation platform, can realize manual operation, semi-automatic operation and fully-automatic operation. Long-distance troubles can be excluded easily by internet and telecom, which largely improves users’ ability to find out the problems and carry on maintenance.
If you are interested in our company or products, welcome to visit our company you can also get contact with us through online consulting, E-mail: info@smachine1983.com and Telephones:+86 18538068019.
company profile
Zhengzhou Smart Machinery Manufacturer Co., Ltd. was established in 1990. It is an enterprise mainly specializing in the research and development, manufacturing and sales of construction machinery including concrete mixing plants, concrete block production lines, etc.

The factory is located in Henan Province, China, covering an area of ​​126,000 square meters, with 50 professional engineers and 200workers. After more than 30 years of continuous innovation and hard work, products have been sold all over the world and are well received by domestic and abroad users, including more than 100 countries and regions: Philippines, Cambodia, Malaysia, Kazakhstan, Uzbekistan, Mongolia, Russia, Colombia, Ecuador, South Africa and so on, and set up an office in Cambodia, with a sound, complete, and huge sales network system.

We can provide customers with the highest quality solutions and production to meet customers' needs for different products, at the same time, we can provide a full range of turnkey projects: equipment installation, commissioning, maintenance and training. High-quality service, advanced technology, sophisticated equipment, and strict management are the foundation reason for company's continuous development and products that can win the support of users. We have won foreign customers’ trust and praise with perfect and professional pre-sales, in-sales, and after-sales services.
Customer visiting
If you are interested in our company or products, welcome to visit our company you can also get contact with us through online consulting, E-mail: info@smachine1983.com and Telephones:+86 18538068019.
Service
1. Guarantee time
All of the life time of SMART machine, free for the first 12 months except the wrong operation.

2. Free Spare parts
SMART will prepare the one set spare parts and delivery them along with the machine.
SMART have the 12 workshops to produce every parts and we can produce spare parts to deliver them to you within 2 days.

3. Technical supporting
SMART Engineer will train you workers to make sure that they know every detail about the machine to make sure they know how to deal with the urgent situation and can repair some normal problem.

4. Office
If we have more than 5 orders in one Area, we will set one office there to take care the after-sales service.
