Describe

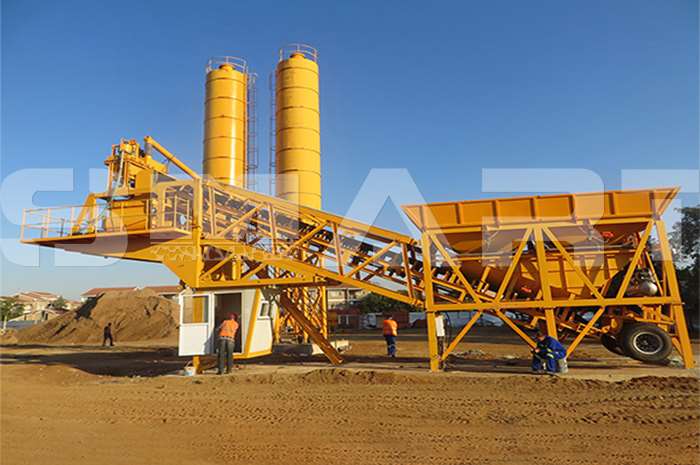

Mobile concrete batching plant YHZS35, whose production capacity is 35m³/h, adopts non-foundation and non-commissioning modular design, it features for good mobility, convenient and quick installation. It only takes 3 days from installing to using. In addition to that, YHZS35 cement mixing plant adopts patent technology “click to supplement”, double control system, self-correcting technology to ensure producing high-quality concrete.
YHZS35 adopt JS750 twin-shaft compulsory mixer ad the host mixer, the mixing efficiency, mixing range wide, can fullest meet various producing requirement. YHZS35 batching plant is ideal concrete equipment for bridges, highway, port, water conservancy project and power station and so on.
YHZS35 adopt JS750 twin-shaft compulsory mixer ad the host mixer, the mixing efficiency, mixing range wide, can fullest meet various producing requirement. YHZS35 batching plant is ideal concrete equipment for bridges, highway, port, water conservancy project and power station and so on.
Model | YHZS25 | YHZS35 | YHZS50 | YHZS60 | YHZS75 | |
Capacity | 25m³/h | 35m³/h | 50m³/h | 60m³/h | 75m³/h | |
Max.Dragging Speed | 40km/h | |||||
Discharging Height | 3800mm | |||||
Concrete Mixer | JS500 | JS750 | JS1000 | JS1000 | JS1500 | |
Max.Aggregate size | 80/60mm | 80/60mm | 80/60mm | 80/60mm | 80/60mm | |
Aggregate Batching Machine | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD2400 | |
Storage Bins Quantity | 2 or 3 or 4 sorts | 2 or 4 sorts | ||||
Measurement Precision | ||||||
Water weighing precision | ±1% | ±1% | ±1% | ±1% | ±1% | |
Cement weighing precision | ±1% | ±1% | ±1% | ±1% | ±1% | |
Additive weighing precison | ±1% | ±1% | ±1% | ±1% | ±1% | |
Control System Type | Computer auto-control, 1 set | |||||
Cement Silo Capacity | 30t/50t/100t | 50t/100t | ||||
Total Power | 35kw | 60kw | 85kw | 90kw | 100kw |
Features
-

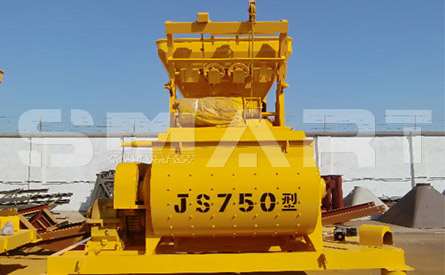

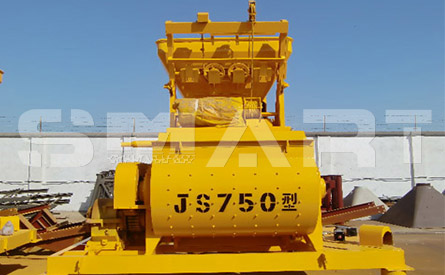

Concrete MixerYHZS35 concrete batch plant adopts top-quality JS750 twin shaft forceful concrete mixer, which features for quick and uniform mixing, high efficiency, wide mixing range and excellent-quality concrete, can fullest meet different producing requirement
-
Control SystemFull automatic control, Siemens motor and Schneider electrical elements. The controls system adopts Siemens hardware and Windows operation platform, can realize manual operation, semi-automatic operation and fully-automatic operation. Long-distance troubles can be excluded easily by internet and telecom, which largely improves users’ ability to find out the problems and carry on maintenance.
-
Pneumatic System.Pneumatic system adopts well-known Taiwan Fusheng air compressor, which is of high configuration, high reliability, high intellectualization and economic running, providing sufficient air supplying for the entire concrete mixing plant.
-
Aggregate Batching PlantPLD series concrete batching machine adopts electronic weighing, computer control and digital display, which can automatically complete the batching procedures of 3-6 kinds of aggregates such as sand, stone and cement. Hopper cumulative weighing, belt cumulative weighing and individual weighing are available.
-
StructureSmart mobile concrete batching plant adopts strong and thick section steel, possessing good shock resistance ability, on the other hand, the overall structure is compact and well-designed, suitable for quick installation, dissembling and convenient dragging.
-

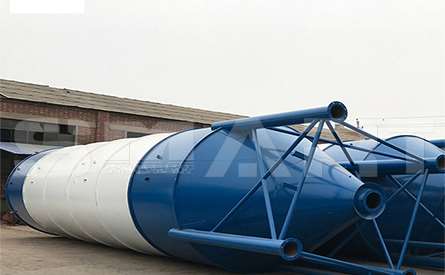

Cement siloIt is suitable for bulk cement storage silo in engineering construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other projects. Waterproof, moisture-proof, prevent cement loss, small footprint, long service life and low cost.
If you are interested in our company or products, welcome to visit our company you can also get contact with us through online consulting,
E-mail: info@smachine1983.com and Telephones:+86 18538068019.
company profile
Zhengzhou Smart Machinery Manufacturer Co., Ltd. was established in 1990. It is an enterprise mainly specializing in the research and development, manufacturing and sales of construction machinery including concrete mixing plants, concrete block production lines, etc.
The factory is located in Henan Province, China, covering an area of 126,000 square meters, with 50 professional engineers and 200 workers. After more than 30 years of continuous innovation and hard work, products have been sold all over the world and are well received by domestic and abroad users, including more than 100 countries and regions: Philippines, Cambodia, Malaysia, Kazakhstan, Uzbekistan, Mongolia, Russia, Colombia, Ecuador, South Africa and so on, and set up an office in Cambodia, with a sound, complete, and huge sales network system.
We can provide customers with the highest quality solutions and production to meet customers' needs for different products, at the same time, we can provide a full range of turnkey projects: equipment installation, commissioning, maintenance and training. High-quality service, advanced technology, sophisticated equipment, and strict management are the foundation reason for company's continuous development and products that can win the support of users. We have won foreign customers’ trust and praise with perfect and professional pre-sales, in-sales, and after-sales services.
The factory is located in Henan Province, China, covering an area of 126,000 square meters, with 50 professional engineers and 200 workers. After more than 30 years of continuous innovation and hard work, products have been sold all over the world and are well received by domestic and abroad users, including more than 100 countries and regions: Philippines, Cambodia, Malaysia, Kazakhstan, Uzbekistan, Mongolia, Russia, Colombia, Ecuador, South Africa and so on, and set up an office in Cambodia, with a sound, complete, and huge sales network system.
We can provide customers with the highest quality solutions and production to meet customers' needs for different products, at the same time, we can provide a full range of turnkey projects: equipment installation, commissioning, maintenance and training. High-quality service, advanced technology, sophisticated equipment, and strict management are the foundation reason for company's continuous development and products that can win the support of users. We have won foreign customers’ trust and praise with perfect and professional pre-sales, in-sales, and after-sales services.
Customer visiting
If you are interested in our company or products, welcome to visit our company you can also get contact with us through online consulting,
E-mail: info@smachine1983.com and Telephones:+86 18538068019.
Service
1. Guarantee time
All of the life time of SMART machine, free for the first 12 months except the wrong operation.
2. Free Spare parts
SMART will prepare the one set spare parts and delivery them along with the machine.
SMART have the 12 workshops to produce every parts and we can produce spare parts to deliver them to you within 2 days.
3. Technical supporting
SMART Engineer will train you workers to make sure that they know every detail about the machine to make sure they know how to deal with the urgent situation and can repair some normal problem.
4. Office
If we have more than 5 orders in one Area, we will set one office there to take care the after-sales service.
All of the life time of SMART machine, free for the first 12 months except the wrong operation.
2. Free Spare parts
SMART will prepare the one set spare parts and delivery them along with the machine.
SMART have the 12 workshops to produce every parts and we can produce spare parts to deliver them to you within 2 days.
3. Technical supporting
SMART Engineer will train you workers to make sure that they know every detail about the machine to make sure they know how to deal with the urgent situation and can repair some normal problem.
4. Office
If we have more than 5 orders in one Area, we will set one office there to take care the after-sales service.
