YHZS50

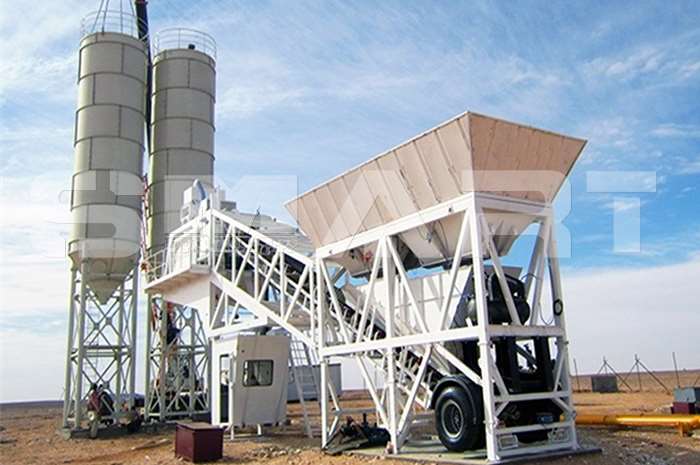

Mobile Concrete Batching Plant YHZS50
  • Capacity: 50m³/h
  • Concrete Mixer: JS1000
  • Max.Aggregate size: 80/60mm
  • Aggregate Batching Machine: PLD1600
  • Total Power: 85kw
Describe
Mobile concrete batching plant YHZS50, whose production capacity is 50m³/h, adopts non-foundation and non-commissioning modular design, it features for good mobility, convenient and quick installation. It only takes 3 days from installing to using. In addition to that, YHZS50 cement mixing plant adopts patent technology “click to supplement”, double control system, self-correcting technology to ensure producing high-quality concrete.

YHZS50 adopt JS1000 twin-shaft compulsory mixer ad the host mixer, the mixing efficiency, mixing range wide, can fullest meet various producing requirement. YHZS50 batching plant is ideal concrete equipment for bridges, highway, port, water conservancy project and power station and so on.

Features
1.Rapid and easily to assemble and disassemble, conveniently to transport.All of the cable connection don’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.
2.The performance of mixing is perfect. It adopts electric drum/twin-shaft concrete mixer to make the concrete mixing equally in shortest time.
3.For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
4.Top-quality configuration, high reliability, accurate measurement, easy operation
Model YHZS25 YHZS35 YHZS50 YHZS60 YHZS75
Capacity 25m³/h 35m³/h 50m³/h 60m³/h 75m³/h
Max.Dragging Speed 40km/h
Discharging Height 3800mm
Concrete Mixer JS500 JS750 JS1000 JS1000 JS1500
Max.Aggregate size 80/60mm 80/60mm 80/60mm 80/60mm 80/60mm
Aggregate Batching Machine PLD800 PLD1200 PLD1600 PLD2400 PLD2400
Storage Bins Quantity 2 or 3 or 4 sorts 2 or 4 sorts
Measurement Precision
Water weighing precision ±1% ±1% ±1% ±1% ±1%
Cement weighing precision ±1% ±1% ±1% ±1% ±1%
Additive weighing precison ±1% ±1% ±1% ±1% ±1%
Control System Type  Computer auto-control, 1 set
Cement Silo Capacity 30t/50t/100t 50t/100t
Total Power 35kw 60kw 85kw 90kw 100kw
Details

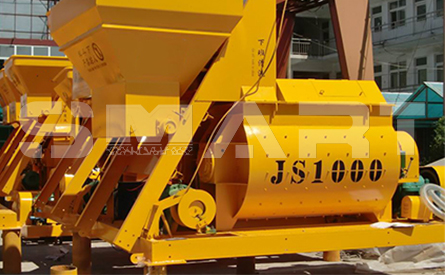

Concrete mixe
Concrete mixe
JS series concrete mixer is a twin-shaft forced mixer, which has two advantages of independent performance and simple concrete mixing station with PLD series batching machine. It can be used to mix dry hard concrete and various mortars, and is very popular in civil construction engineering, road and bridge construction.
Weighing system
Weighing system
Water weighing, cement weighing, additive weighing, and other weighing systems can also be installed according to customer requirements. It adopts three-point weighing method, which has the characteristics of accurate weight, automatic compensation, fast speed and convenient operation. The weighing error is controlled within ±1%.
Cement silo
Cement silo
It is suitable for bulk cement storage silo in engineering construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other projects. Waterproof, moisture-proof, prevent cement loss, small footprint, long service life and low cost.
PLD Batching Machine:
PLD Batching Machine:
PLD series concrete batching machine adopts electronic weighing, computer control and digital display, which can automatically complete the batching procedures of 3-6 kinds of aggregates such as sand, stone and cement. Hopper cumulative weighing, belt cumulative weighing and individual weighing are available.
Pneumatic System
Pneumatic System
Pneumatic system adopts well-known Taiwan Fusheng air compressor, which is of high configuration, high reliability, high intellectualization and economic running, providing sufficient air supplying for the entire concrete mixing plant.
Control room
Control room
The control system adopts Siemens hardware and Windows operating platform, which can realize manual operation, semi-automatic operation and fully automatic operation. Remote faults can be easily eliminated through the Internet and telecommunications, improving the user's ability to find problems and perform maintenance.
