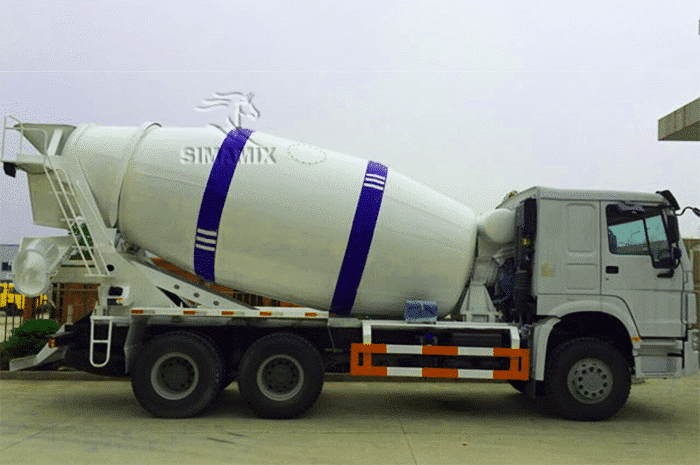

Concrete Mixer Truck 9 Cubic Meters
Concrete Mixer Truck 9 Cubic Meters
  • Geometric volume: 13.2m3
  • Effective stirring volume: 9m3
  • Diameter: 2.2m
  • Installation size: 860*4900mm
  • Dimension (LxWxH): 5640x2200x2560mm
Descriptions
Concrete mixer truck 8 cubic meters is a special truck used to transport concrete for construction.

Because of its shape, it is often referred to as a field snail truck.

These trucks are equipped with cylindrical stirrer to carry mixed concrete.

In the course of transportation, the mixing drum will always be rotated to ensure that the concrete carried will not solidify.

After the concrete is transported, the inner part of the mixing drum is usually flushed with water to prevent the hardening of the concrete from occupying space, so that the volume of the mixing drum will not become smaller and smaller.


Features
1: Excellent mixing performance

The rotating direction of mixing stars is reversed with the revolution direction, and each mixing star’s direction is also different.

There are both    circulation movement and convective movement during material mixing, which makes the material severely mixed.

The counter current and impact prevent material from agglomeration and thoroughly mixed and achieve the uniform distribution in microcosm.

2: High mixing efficiency, low energy consumption

The new concept of counter-current mixing makes the mixing tracks more complex, mixing effects more severe and effective.

In the condition of same material proportion and same feeding order, the innovated planetary mixer’s mixing time is shortened by 15-20% compared to traditional models.

The innovated power driving design and optimized mixing device are of high transmission efficiency.

Both the no-load current load current are lower by 15-20% compared to traditional planetary mixers.

3: Optimized mixing device design

Optimized mixing blades and installation angle, and improved mixing arm make the mixing motion more effective.

The load distribution of gearing system is more reasonable, the discharging faster and cleaner, effectively avoiding material sticking and material deposit.

4: Multiple rotate-speed configurations

Multiple-rotate-speed gearing device can deal with different materials and conditions.

The gearing configuration is only adjusted inside the reducer.

The appearance and connecting part are universal, which makes the mixer’s application wider.
Parameters
Item 7m3 8m3 9m3 10m3
Geometric volume 10.2m3 11.8m3 13.2m3 15m3
Effective stirring volume 7m3 8m3 9m3 10m3
Diameter 2.15m 2.2m 2.2m 2.2m
Tilt angle 16 16 14 14
Overall dimension (mm) 5020x2150x2441 5296x2200x2532 5640x2200x2560 6080x2200x2652
Installation size (mm) 800x4200 860x4530 860x4900 860x5300
Rotation speed 0-10 0-10 0-10 0-10
If you are interested in our company or products, welcome to visit our company you can also get contact with us through online consulting, E-mail: info@smachine1983.com and Telephones:+86 18538068019.
Service
1: Guarantee time

All of the life time of SMART machine, free for the first 12 months except the wrong operation.

2: Free Spare parts

SMART will prepare the one set spare parts and delivery them along with the machine.

SMART have the 12 workshops to produce every parts and we can produce spare parts to deliver them to you within 2 days.

3: Technical supporting

SMART Engineer will train you workers to make sure that they know every detail about the machine to make sure they know how to deal with the urgent situation and can repair some normal problem.

4: Office

If we have more than 5 orders in one Area, we will set one office there to take care the after-sales service.
